Description
This is a used Swart Space Tone Atomic Jr combo amp. The item pictured is the one you will receive. It has been tested and gone over by the experts at our shop to ensure it’s working properly and is free of issues, unless otherwise noted in this listing. Please read the description carefully and check over all photos for condition and wear. We do our best to describe all items as best as possible and note any wear we find, but please be considerate that it is a used piece and it won’t be perfect. We pack all items with care when shipping them. If you have any questions about this or any other piece of gear we have, please let us know and we’ll be happy to help!
————————-
Condition Notes:
– Condition: 9/10
– Any wear of note: This amp is in truly incredible shape overall and very clean! The only thing of note is the seams on the front top corners are starting to show, but that’s fairly common and it’s extremely minor. The speaker in the amp might not be original, as Swart is currently using Weber speakers. But the Jupiter 8-SC is of comparable high quality and an amazing sounding speaker that’s very fitting to this amp! And it is definitely possible that they shipped this amp with this current speaker, as it was made in 2016 and they didn’t always use Weber.
– General notes: Swart always makes outstanding amps, and this is no exception! It’s compact, lightweight, little 5-watt tone monster that’s full of stellar tones with a lush reverb on tap. It’s easy to use and is super responsive and touch reactive. Made in Wilmington, North Caroling and featuring impeccable craftsmanship and design from Swart you can always rely on! Plug it in, and get to playing!
– Accessories included: Padded cover only (power cable is hardwired)
————————-
Specifications
Brand/Model: Swart Space Tone Atomic Jr Combo

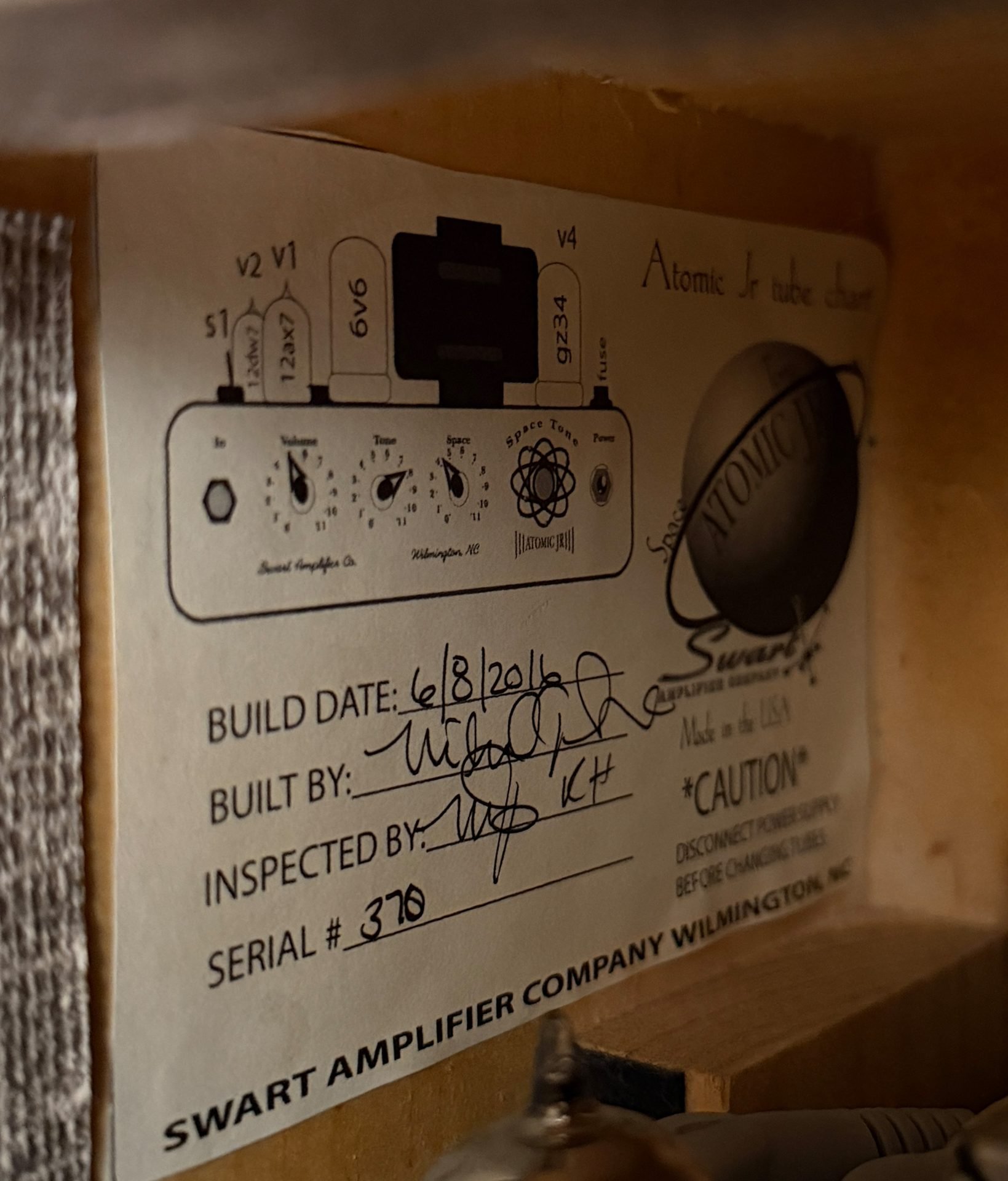

Serial number: 370
Date manufactured: June 8, 2016
Location manufactured: Wilmington, North Carolina
Wattage/Output: 5-watts
Channels: Single
Power tubes: 1x 6V6GT
Preamp tubes: 1x 12AX7, 1x 12DW7
Rectifier tubes: 1x GZ34

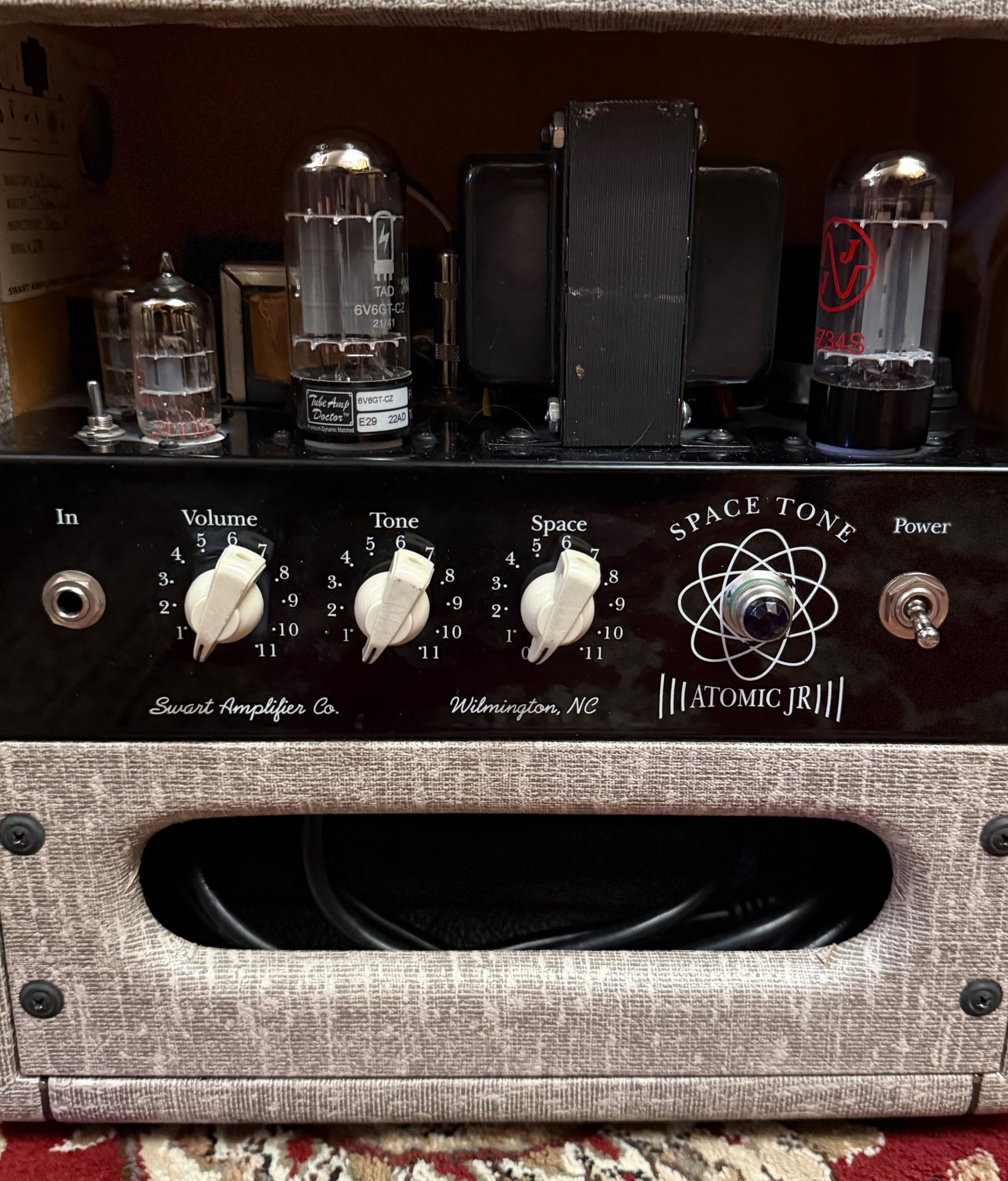

Controls: Volume, Tone, Space (Reverb) w/ mode switch for Hot and Clean

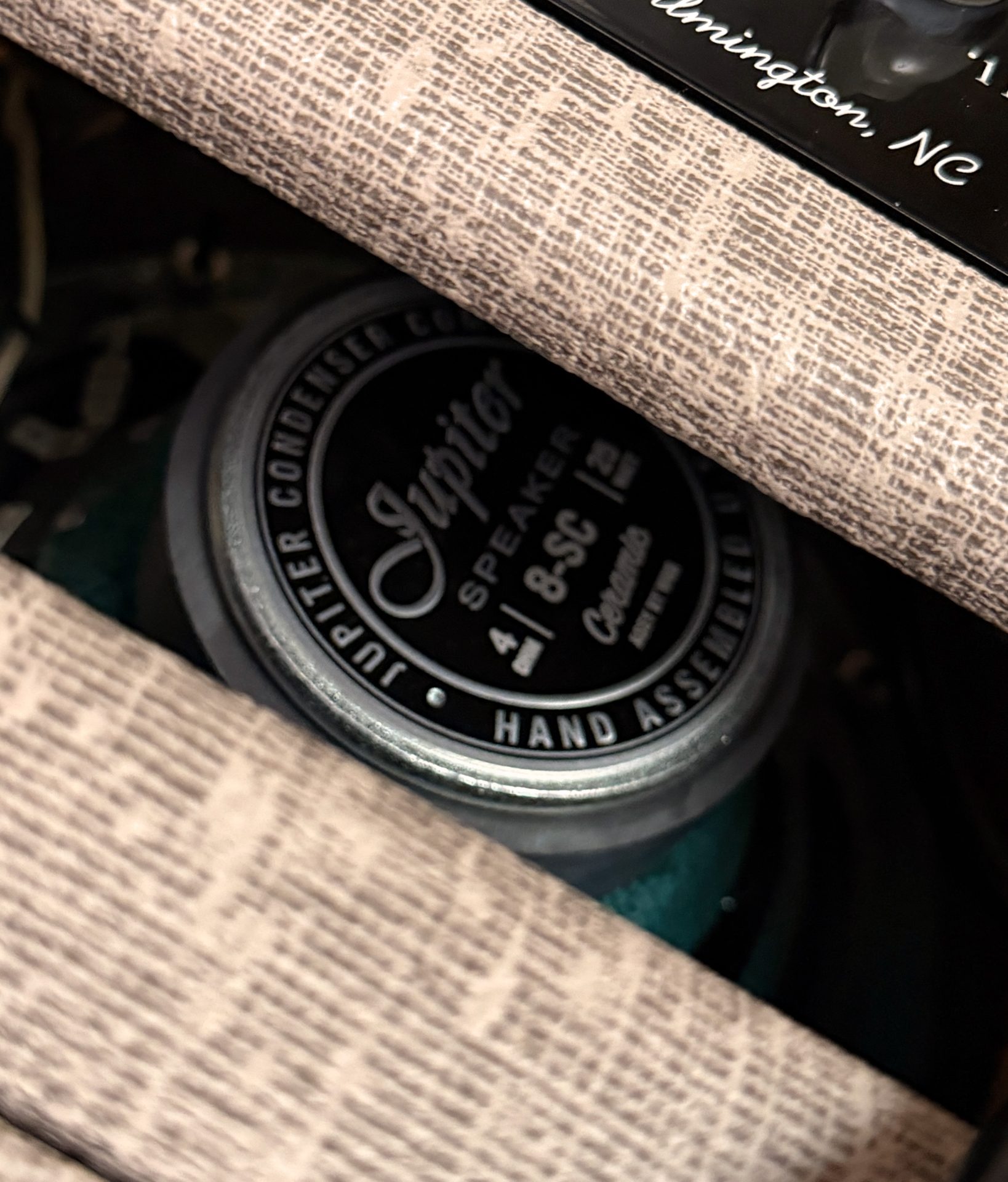

Speaker: Jupiter 8-SC, 25-watt, 4-ohm, 8″
Dimensions: 13 3/4T x 13W x 7 1/4 D
Weight: 14lb
————————-
From Swart:
Space Tone Atomic Jr
5W SE Class A • TRIODE REVERB • 6V6/6L6
Tube Rectified • 14lbs of Tonal Bliss w/Swart Verb
———-
If only words could actually convey sound fully; they always fall short to some extent. And that’s where I stand with the Space Tone Atomic Jr, the latest amazing, soulful little amp from the hands of Michael Swart.
The new ST-Atomic Jr starts off with the heart of our ever-popular ST-6V6se with the addition of a year in the making, triode reverb stage utilizing a dedicated 12DW7 fed into a nifty spring tank for surprisingly BIG REVERB, especially for a cabinet this size. Actually, for ANY size cabinet.
The tonal variations and REVERB in this little monster must be be heard to be believed. Most amps this size attempting reverb and big tone tend to be underwhelming. Not so with the 14lb Class A ST-Atomic Jr.
The circuit remains amazingly simple, including this reverb stage, and will feature volume, tone, and Swart’s patented “Space” reverb. I’ve been playing this beast non-stop since the prototype hit my apartment, never to leave. It’s the perfect amp for those craving AST type sound in a package that weighs no more than a ribald ole Tom Cat.
There is a cool switchable gain option in place of the 6V6se feedback switch. When in circuit, the amp has more cleans and take a bit longer to break-up. It’s a slightly more controlled result. Flip it out of circuit and you have slightly less compression with a more raw take, quicker to get into the fun stuff. Think of it as HOT SWITCH NOW like the good ole Krispy Kreme Donut Shop.
Like all Swart amps, the circuit is point to point, hand-wired and CATHODE BIASED with no need to mess with adjustments when rolling tubes.
The Atomic Jr has two driver/preamp tubes comprised of one 12AX7 and one 12DW7 feeding either a 6V6 (stock) or 6L6 family power tube. We also keep the simple tone cut bringing the least complexity, integral in keeping touch sensitivity and transparency. Of course, the Atomic Jr. relies on tube rectification for PS filtering with a JJ 5AR4/GZ-34 as stock with the ability to run a NOS 5Y3 for more Sag, compression, earlier breakup, and that Brown Sound (it also brings 34v less on the tubes).We want to avoid that harshness that seems to ride along with solid state rectification. Try a vintage 5Y3 for a bit more SAG and less voltage on the power tubes.
———-
Space Tone Atomic Jr Specifications
- 5W CLASS A ~ JUST INSANELY BIG TONE wReverb
- Single-Ended Output – Zero Negative Feedback
- 100% Tube Circuit – GZ34 or 5Y3 Valve Rectifier
- Big Swart Tube Reverb via 12DW7 & Spring Tank
- Hot and Clean mode Switch
- Powered by choice of 6V6 or 6L6 (shod w/6V6)
- 12AX7 – 12DW7 – 6V6GT – GZ34 Rectifier
- Point to Point Hand Wired Circuit
- Cathode Biased (no need to bias)
- Carbon Comp Resistors ~ Mallory Caps
- Cloth Hook-Up Wire
- Heaters referenced to ground
- All Swart Amplifiers employ Star Grounding
- 4 ohm 1/4″ Out – Drive other Speaker/Cabinet
- Can drive 8ohm LOAD without issues
- Switchcraft 1/4 inch input and output
- CTS Potentiometers
- Custom High Quality USA Built Swart Spec Iron
- Finger-Jointed, solid Pine Cab
- Vintage Jewel Lamp ~ Circuit Fuse Protected
- Dimensions: 13 3/4T x 13W x 7 1/4 D @ 14lbs
