Description
This is a used Flower Pedals Dahlia Dual Analog Delay pedal. The item pictured is the one you will receive. It has been tested and gone over by the experts at our shop to ensure it’s working properly and is free of issues, unless otherwise noted in this listing. Please read the description carefully and check over all photos for condition and wear. We do our best to describe all items as best as possible and note any wear we find, but please be considerate that it is a used piece and it won’t be perfect. We pack all items with care when shipping them. If you have any questions about this or any other piece of gear we have, please let us know and we’ll be happy to help!
————————-
Condition Notes:
– Condition: 10/10
– Any wear of note: None! In mint condition!
– General notes: A truly stellar delay pedal from Flower Pedals! Featuring two fully independent analog delay circuits in one enclosure! With impeccable build quality and incredible design!
– Accessories included: Original box, bag, pick, sticker and instruction literature only.
————————-
From Flower Pedals:
Dahlia Dual Analog Delay
The Dahlia packs two fully independent analog BBD delay circuits into a single compact enclosure with true stereo ins and outs, 6 saveable presets, and full MIDI control. Each delay offers up to 820ms of warm, organic analog delay with independent control over every parameter. Run them in stereo for lush spatial imaging, in parallel for layered textures, or in series for cascading repeats, all through an entirely analog signal path with modern digital control.
Key Features
– Two independent analog BBD delay circuits in one enclosure
– Up to 820ms of true analog delay per engine
– Three routing modes: Stereo (true L/R), Parallel (dual mono), and Series (cascading)
– 12 controls per delay including mix, time, feedback, tone, modulation, and gain staging
– Tap tempo with selectable divisions
– Time Lock system: sync delay times, set stereo width offsets, or create rhythmic division
– 6 onboard presets with color-coded LED (rare for a fully analog pedal)

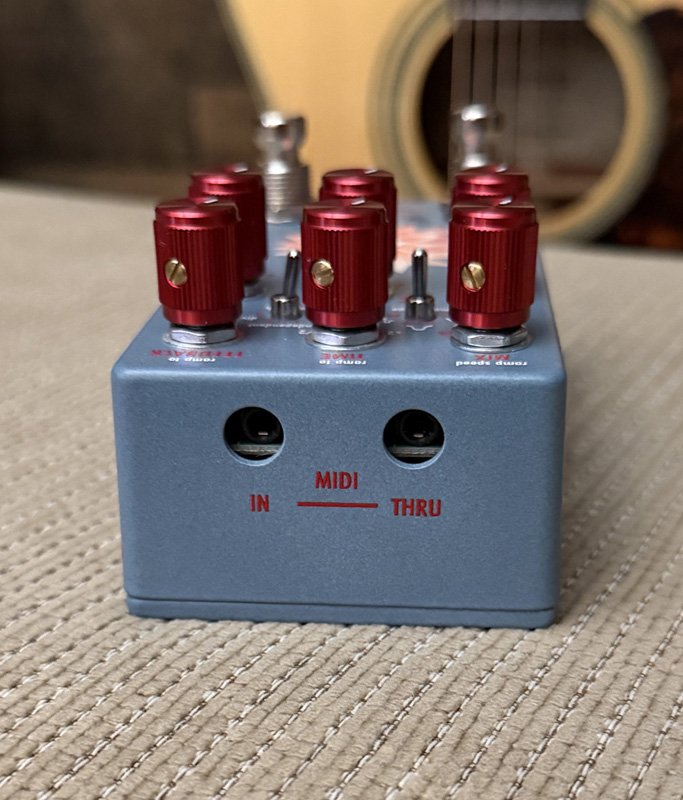

– 3.5mm MIDI in/thru with integrated optocoupler (no converter box needed)
– Expression pedal input with per-parameter heel/toe mapping
– TRS stereo input and output for compact stereo rigs
———-
Dual Delay Controls
Each delay has 12 parameters split between primary and secondary controls. The primary controls cover Mix, Time, Feedback, Tone, Tap Division, and Modulation Depth. Secondary controls add Mod Speed, Mod Shape (triangle/sine/random), input Gain staging, Ramp Speed, and independent Ramp To targets for both Time and Feedback. The Control switch lets you adjust Delay 1, Delay 2, or both simultaneously.
Time Lock System
The Time Lock feature is one of the Dahlia’s most powerful tools for stereo and rhythmic playing. In Independent mode, each delay runs on its own time setting. Width mode offsets Delay 2 from Delay 1 by a variable amount, which is perfect for creating subtle stereo separation without drastic timing differences. In Division mode, Delay 2 locks to a rhythmic subdivision of Delay 1, enabling polyrhythmic delay patterns.
Routing Modes
Stereo mode assigns Delay 1 to the left output and Delay 2 to the right for true stereo imaging. Parallel mode mixes both delays to both outputs in dual mono, giving you two layered delay textures from a single output. Series mode feeds Delay 1 into Delay 2, creating cascading repeats where the second engine adds its own character to the first engine’s repeats.
Expression & Presets
Map any combination of parameters to an expression pedal with independent heel and toe positions. A copy function simplifies setup by letting you duplicate one position to the other as a starting point. Expression mappings save to the first three presets, and all six presets store every parameter including tap tempo.
———-
Specifications
Circuit Type – Fully analog BBD signal path, digital control
Delay Engines – 2 independent, up to 820ms each
Routing – Stereo, Parallel, Series
Presets – 6 onboard (3 with expression mapping)
MIDI – 3.5mm in/thru (Type A TRS, integrated optocoupler)
I/O – TRS stereo in, TRS stereo out, 1/4” expression/tap
Power – 9 to 18V DC center negative, <250mA
